Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use.

The Tricefy™ Uplink app includes the interface to Tricefy. Tricefy is a cloud-based solution to support archiving, collaboration and exchange of images, clips and reports.

Start a free trial by registering with your email address. Your Vscan Extend will immediately be cloud-enabled giving you an offsite secure image archive, a zero-footprint DICOM viewer and all the sharing and collaboration features in Tricefy.

Tricefy is a product of Trice Imaging. Trice bears sole responsibility for the Tricefy Uplink app and Tricefy cloud solution.

Tricefy trademarks are registered trademarks of Trice Imaging, Inc.

NOTE: Tricefy Uplink is a Vscan Extend app separately provided to the customer by Trice Imaging. All customers of Vscan Extend in Wi-Fi Access or DICOM configuration may elect to download the app, but an agreement with Trice has to be entered before this app can be used with Tricefy. Such agreement will be between Trice and the customer. Trice Imaging bears sole responsibility for the Tricefy Uplink app and Tricefy cloud solution.

Configure Tricefy Uplink

Add Tricefy Uplink as a storage server:

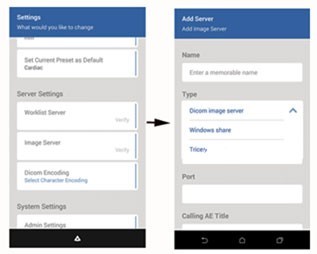

1. Press Menu -> Settings -> Image Server




2. Press Tricefy Uplink from the Server Type. The login page displays.

3. Enter the email ID registered with the Tricefy Uplink.

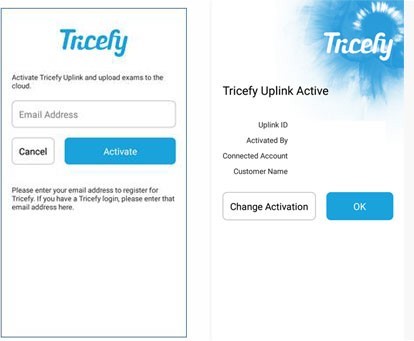

Tricefy Uplink Active


4. Press Add Server -> Verify.

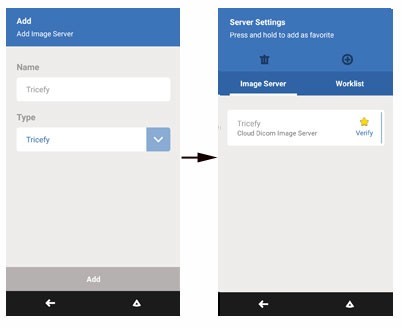

Add Tricefy and Verify

Using Tricefy Uplink App


1. Press Menu -> Exams -> Export icon.




2. Press Upload Selected to export the exam.

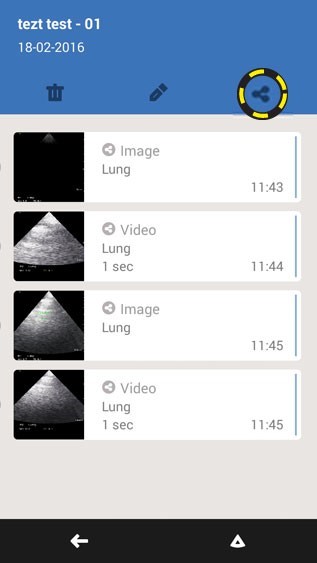

Upload selected exam


The selected exam(s) are exported to the Tricefy server

NOTE: If several storage destinations are configured, the user needs to select the intended destination, in this case, the Tricefy server.
