Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use.

The Enterprise Archive Uplink app provides the interface to GE’s Centricity Enterprise Archive™, a vendor neutral archive solution for both DICOM® and non-DICOM content. The Enterprise Archive Uplink app enables a secure export of Vscan Extend ultrasound DICOM images to Centricity Enterprise Archive via the DICOMweb™ standard STOW-RS.


Centricity Enterprise Archive needs to be purchased separately.


Centricity Enterprise Archive is a trademark of General Electric Company.


DICOM and DICOMweb are registered trademarks of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.


NOTE: * Applications under GE Marketplace are available as options (not available in all geographies).


Configuring the Enterprise Archive Uplink (EA)

To configure EA as image server:

1. Press image server tab from server settings.

2. Press Add icon and enter server name and then select Type as Enterprise Archive.

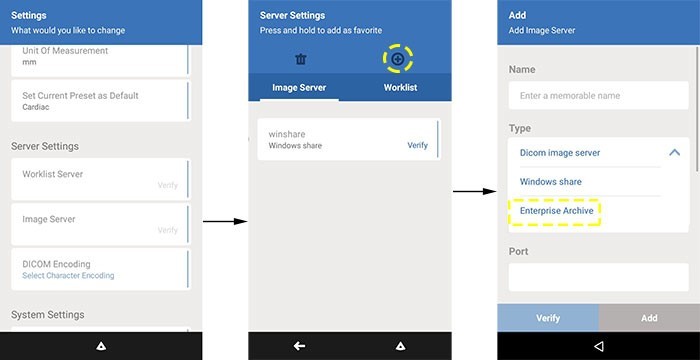

Add EA as image server



3. Enter a url name of the configuration website, user name and password.


4. Press Activate button. An activation successful pop-up appears, if the activation is success. Press Ok.

5. Press Verify button. A verification successful pop-up appears, if the verification is success. Press Ok.

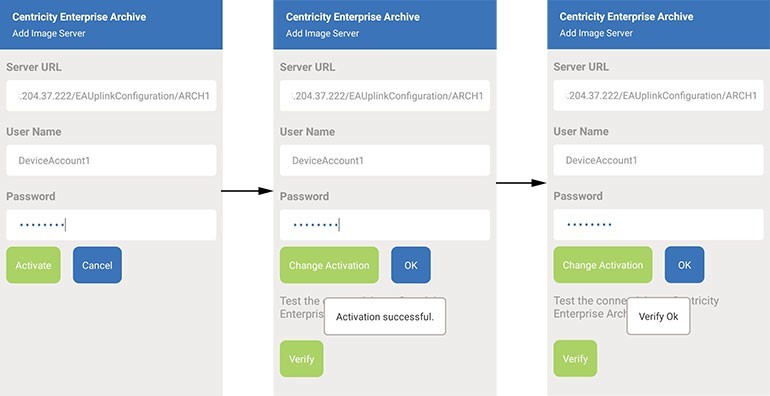

Verify EA image server



6. Press Add button to add the server.

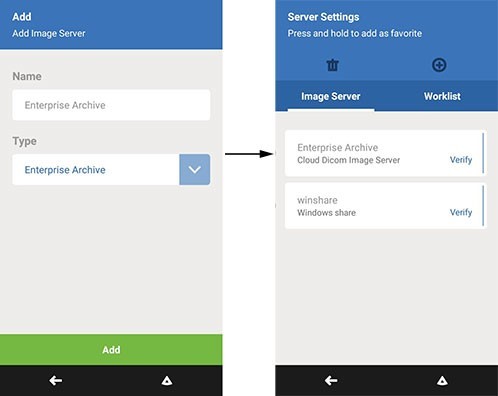

Add server



You can verify the connectivity with the DICOMweb STOW-RS service.


You can choose to set Enterprise Archive link as favorite. Refer to ‘Configure Image Server’ to set EA as favorite.

NOTE: Once the app is installed, EA image server is available as a new storage destination.


Using EA Uplink

Export images to the EA server via Menu -> Exams -> Export.

NOTE: Refer to ‘DICOM Store: exporting DICOM images from Vscan Extend to DICOM image server’ and follow the steps to export images.
NOTE: If several storage destinations are configured, select the desired destination, in this case, the EA server.


Select EA server
